12V Submersible Trailer Light Kit, LED Stop Turn Tail Lights, IP67 Waterproof, DOT Compliant for Boat Trailer Truck RV Camper Under 80"

Features:

• Trailer Light Kit: the led boat trailer light kit has everything you need. includes 2 brake/turn signal tail lights, 2 amber LED clearance marker lights ,25-ft wiring harness,license plate bracket, mounting hardware bag and 4pcs complimentary reflective sticker.
• IP67 Waterproof and Submersible: It is completely sealed, it mean no water can enter inside to damage the circuit board, it can work long hour in rainy days, fog day or snow day, it is totally submersible
• Long-Lasting LED Tail Lights: Compare with other low profile tail lights, this tail light's SMD 5050 lamp beads produces a super fashion and more brighter light, no glare, Up to 50,000 hrs life expectancy, improve the safety on road
• DOT Compliant: The boat trailer lights made from durable ABS materials to withstand harsh weather conditions. has serve multiple purposes, including functioning as brake lights, turn signals, and running lights. Compliant with DOT standards, ensuring they provide adequate visibility and meet legal requirements.
• Easy Installation: come with 25ft wiring harness( 21.65ft length wire harness and 3.93ft wire harness ), so that it is long enough to reach end of trailer, install instruction included. Easy to install on various types of trailers. such as truck, trailer, boat, bus, Lorry, Van, caravan, snowmobile and under 80 Inch width towing vehicle

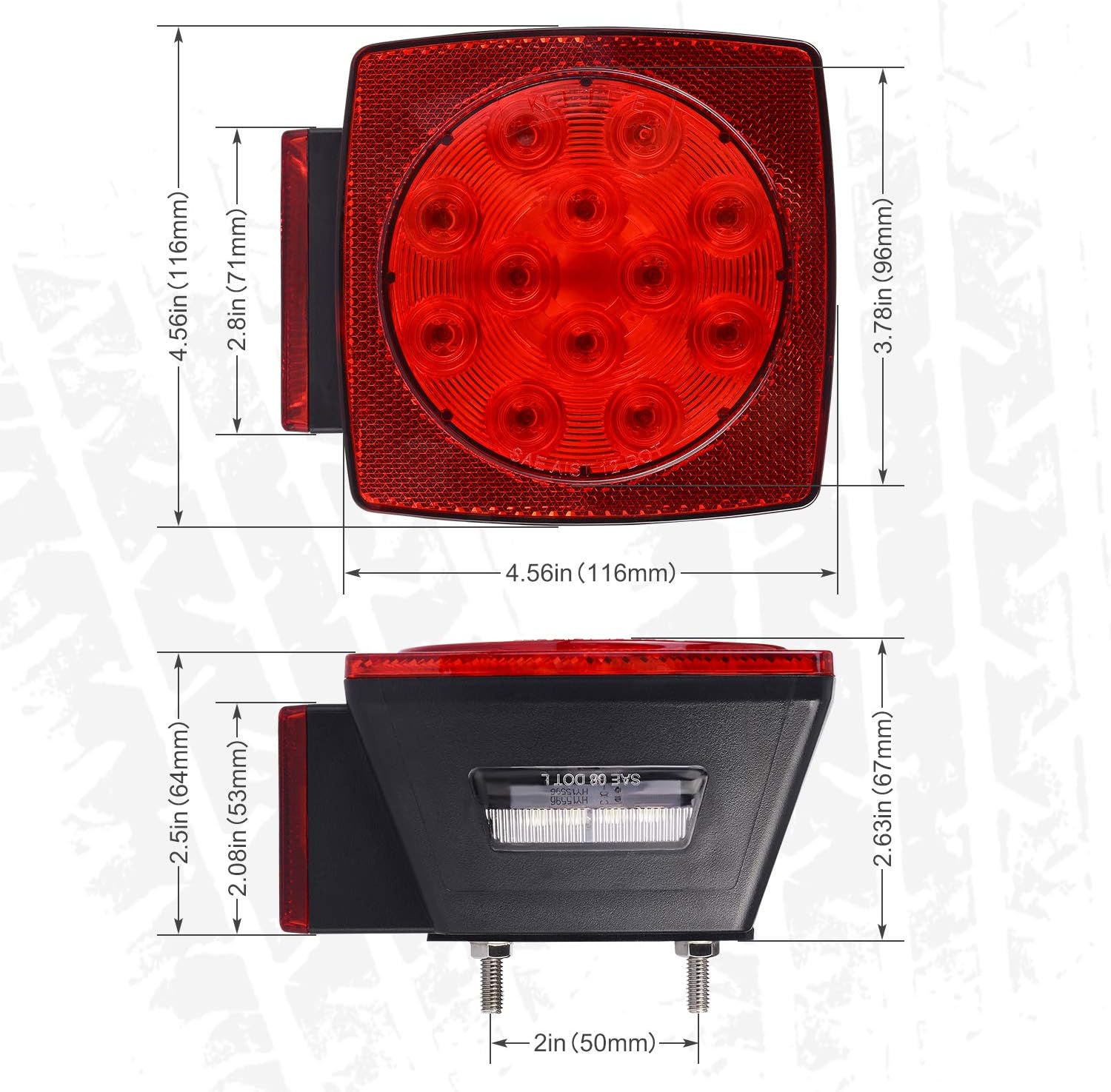

• Includes 2 LED brake/tail lights (4.5” square lens), 2 LED marker lights, license plate bracket, wiring harness and mounting hardware
• Fully submersible

NEED HELP? CALL US FOR ASSISTANCE AT ‪(941) 529-7587 M-F 9-5pm EST
American/Veteran owned business

View Our Refund and Warranty Policy

Ordering Issues: Contact us Monday-Friday 9AM-5PM(EST).
Phone: (941) 529-7587 or email us at cs@bikerlife1.com

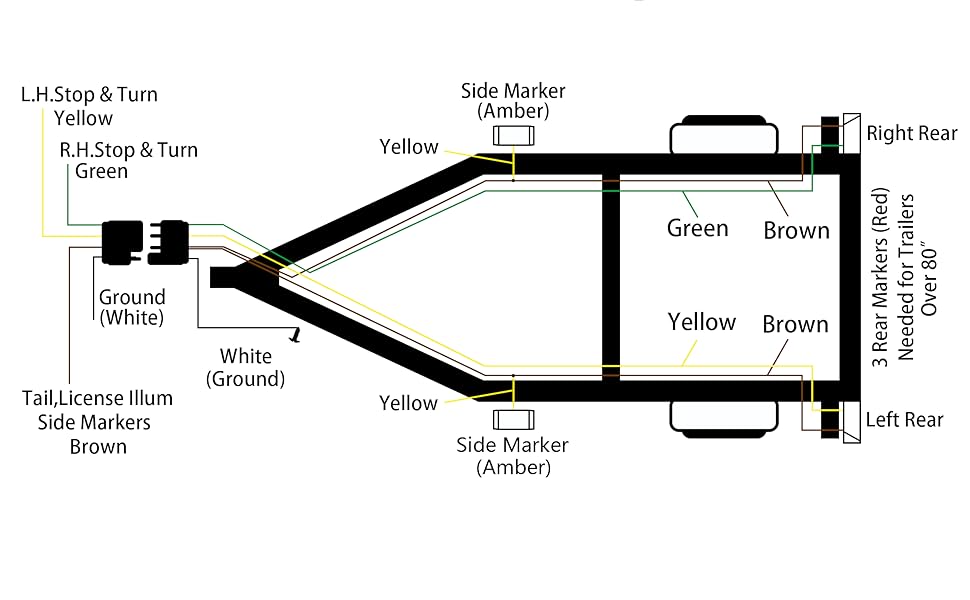

On the trailer wire harness plug:

White is ground

Brown is tail lights

Yellow is left turn signal ?usually connect with license plate light side?

Green is right turn signal ?usually connect without license plate light side ?

On the tail lights:

white is ground(Attach the WHITE GROUND wire to the towing Trailer 's frame)

brown is tail lights

Yellow/Green is turn signal/brake

On the side lights:

Black is ground(Attach the BLACK GROUND wire to the towing Trailer 's frame)

Yellow is side light

Package Included:

1 pair of LED taillights

1x bracket

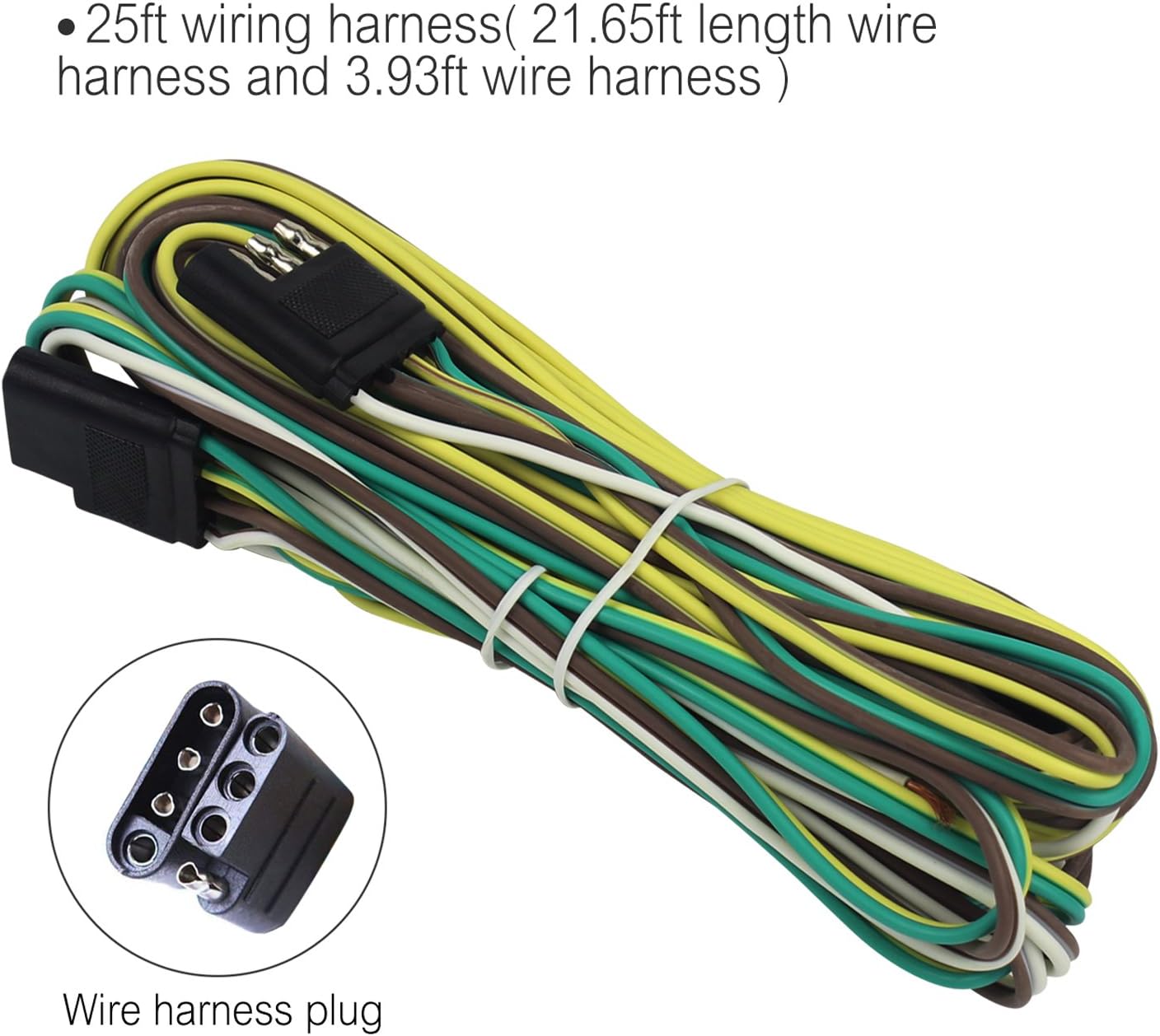

25ft wiring harness( 21.65ft length wire harness and 3.93ft wire harness )

Mounting hardware are included

4 pcs complimentary reflective stickers
